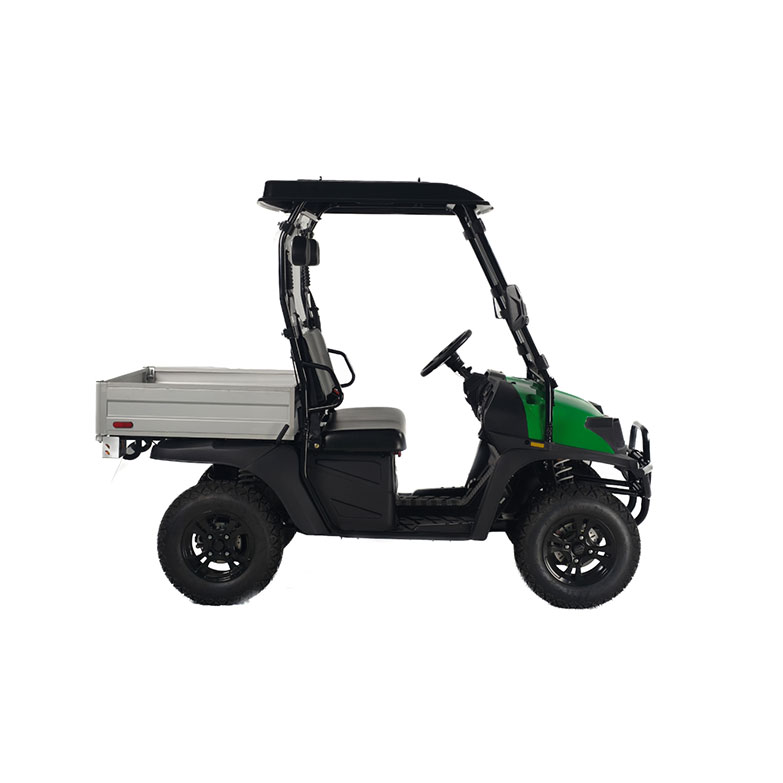

| Specification of XY50EV-B1 | |
| Length x Width x Height | 2350mm x 1380mm x 1870mm |
| Wheelbase | 1664mm |
| Ground clearance | 240mm |
| Weight with full equipments | 620Kg |
| Loading capacity with full equipment | 150kg |
| Maximum Speed | 45km/h |
| Brake Type (front/rear) | Disc/Disc |
| Drive Mode | Rear Shaft Drive, Rear differential |
| Control Mode | Steering Wheel |
| Suspension front/rear | Front McPherson, Rear Dual A-ARM |
| Transmission Mode | Shaft Drive Transmission |
| Bed Dimension | 670mm x 1102mm x 240mm |
| Electromotor | 72V AC Motor |
| Rated Power | 5KW |
| Max Torque | 70N.m |
| Vehicle voltage | 72V |
| Battery capacity | 72V 83Ah |
| Mileage | 65km |
